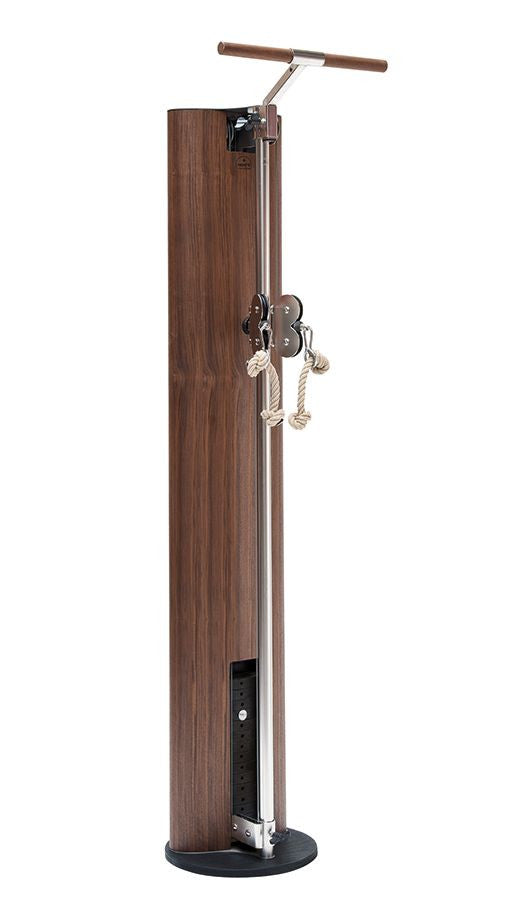

NOHrD SlimBeam Cable Machine Walnut

The Design
The SlimBeam captivates with its sleek form and the choice of various finishes made from high-quality woods such as ash, oak, cherry, or walnut. The NOHrD SlimBeam offers a design that, like an exquisite piece of furniture, integrates into any living environment and enhances it.

Dimensions
The SlimBeam requires an absolute minimum of space. With its height of 215cm and width of 40cm, it aesthetically fits into any living environment. It is securely mounted 10cm from the wall and its body protrudes only 20cm into the room. Its footprint is less than half a square meter. Maximum training with minimal space requirements.

The Training
Multifunctional and versatile - the cable pull technique makes strength training extremely effective. Training on the SlimBeam cable pull challenges the abdominal and back muscles to ensure body stability. By adjusting the cable pull position, specific muscles can also be trained - from chest to back, shoulders, arms, and legs - everything is possible.
The range of motion of the cables is impressive. Pull distances of 4 meters (for double pull) and 8 meters (for single pull) allow for maximum functional development in training. The effective maximum weight of 12.5 kg (single pull) or 25.0 kg (double pull), distributed over 15 weight plates, results in a very fine and harmonious weight gradation. In addition, the SlimBeam's transmission can be changed to increase the effective maximum weight.

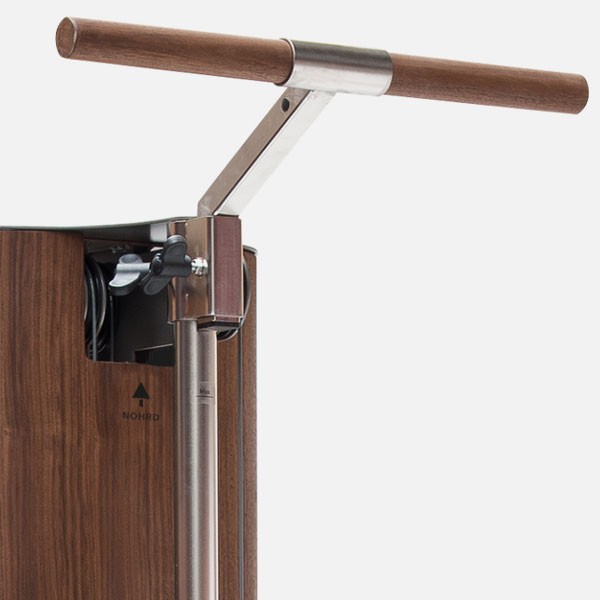

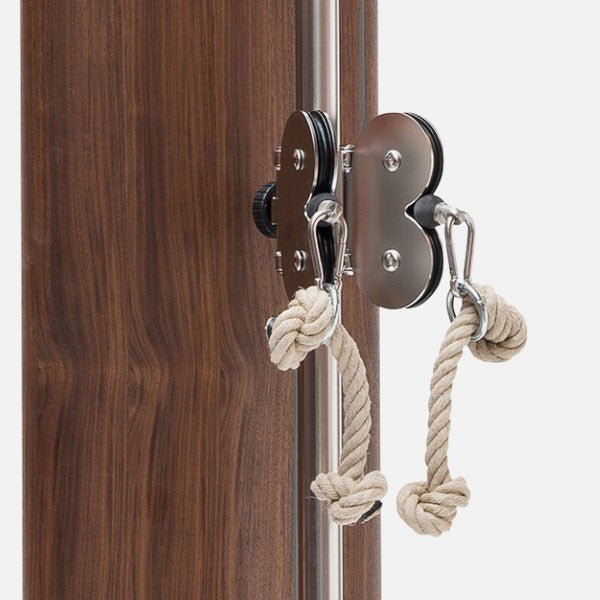

Butterfly
Single and double-sided - the greatest advantage of the SlimBeam is the butterfly. It allows for both double-sided and single-sided training, and is height-adjustable and swivel-mounted. The plastic-coated pull ropes run smoothly over the ball-bearing rollers for optimal training effect.

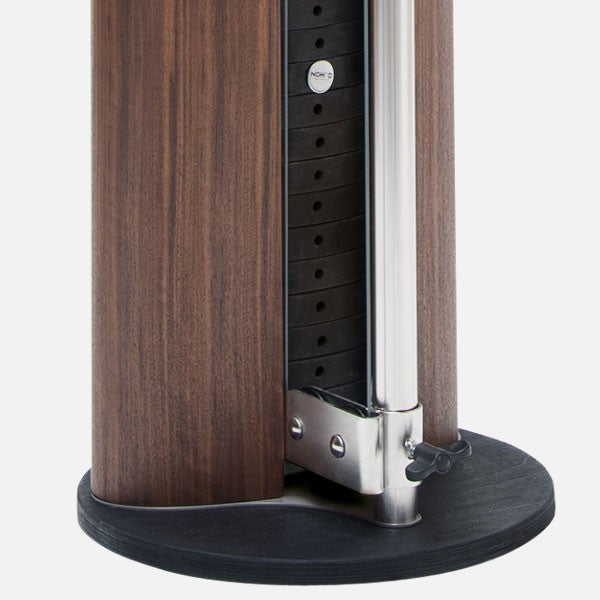

Weights
By default, 14 weights of 5kg each plus the 5kg drive weight are installed in the SlimBeam. Each weight is individually rubberized for noise reduction. The matte black rubber coating and the oval shape ensure that the weights perfectly match the wooden body.

The Pull Ropes
From 3:1 to 1:1 - the transmission can be changed by replacing the pull rope. This allows for transmissions of 3:1, 2:1, and 1:1. The effective maximum weight reaching the body of 12.5kg (single pull) or 25.0kg (double pull), distributed over 15 weight plates, results in a very fine and harmonious weight gradation. The standard transmission is 3:1. It can optionally be converted to 2:1 and 1:1 transmissions.

Single Pull:
2.5-37.5kg with 1:1 transmission
1.25-18.75kg with 2:1 transmission
0.83-12.5kg with 3:1 transmission

Double Pull:
5-75kg with 1:1 transmission
2.5-37.5kg with 2:1 transmission
1.65-25kg with 3:1 transmission

Digital Workouts Upgradable
The SlimBeam is pre-assembled so that it can be extended at any time with the SlimBeam Monitor. The built-in electronics ensure that the set weight, total weight, and number of repetitions are automatically detected and clearly displayed during training. Each exercise is displayed in detail with a video, and with the Workout-of-the-Day, you receive new full-body workouts daily. A power connection is required.

Training Manual
Over 80 exercises in the training manual - the SlimBeam is the all-round device for home training, and to ensure that the correct training intensity is always found, exercises have been developed in the accompanying training book that leave nothing to be desired, from easy to difficult.

Awards
Awarded by the German Design Award and the Plus X Award - the SlimBeam was honored by the jury in three categories: 1. High Quality, 2. Design, 3. Functionality. This seal of approval stands for best quality, durability, and sustainability. In addition, its functional design was recognized.

Features:

• Delivered in 3:1 ratio (2:1 or 1:1 ratio available for an extra charge)
• Base plate D44cm
• Dimensions: D20 x W40 x H215cm
• Wall clearance 10cm
• 14 weights of 5kg each
• 1 guide weight 5kg
• Total weight approx. 120kg
• maximum pull length for single pull: 8m
• maximum pull length for double pull: 4m
• Pull-up bar with adapter and 2 hemp ropes included
• Finish: Walnut (body veneered with real wood)

Available Options for SlimBeam Cable Tower:

• Monitor
• Ceiling mount
• Accessory adapter
• Pull-up bar
• Lat pull-down upgrade set
• Foot strap
• Ball-bearing pull handles
• SlimBeam care kit
• Lubricating oil
• Aluminum lat pull-down bar
• Short aluminum lat pull-down bar
• Pull rope

Usage: Home use to light-institutional continuous use
Device dimensions: D20 x W40 x H215cm, weight 120kg
Options: Monitor, accessory adapter, connecting bracket set, foot strap, ball-bearing pull handles, care kit, lubricating oil, pull rope. Lat pulldown bar, short lat pulldown bar
Accessories: Pull-up bar with adapter, 2 short hemp ropes
Warranty: 2 years labor and parts (excluding consumables)
