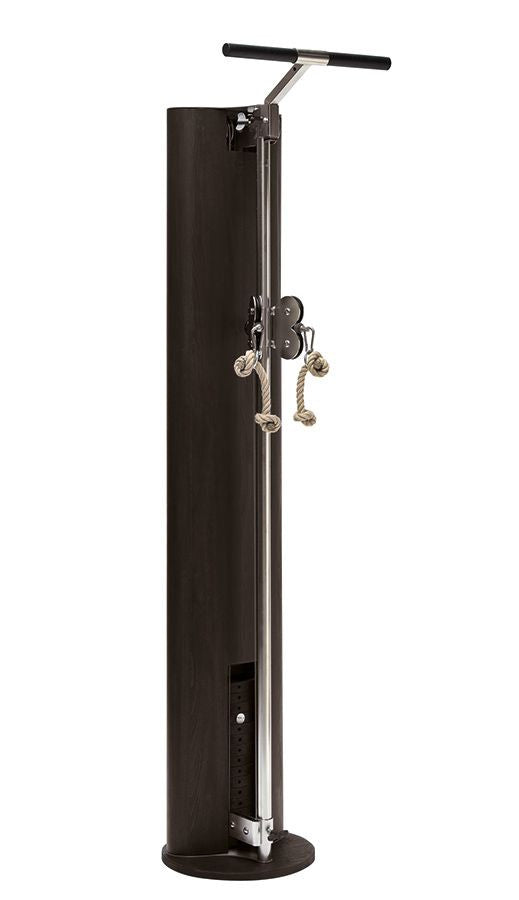

NOHrD SlimBeam Cable Machine Shadow

The Design
The SlimBeam captivates with its sleek design and the choice of various finishes made from high-quality woods such as ash, oak, cherry, or walnut. The NOHrD SlimBeam offers a design that, like an exquisite piece of furniture, integrates into and enhances any living environment.

Dimensions
The SlimBeam requires an absolute minimum of space. With its height of 215cm and width of 40cm, it aesthetically blends into any living space. It is securely mounted 10cm from the wall, and its body protrudes only 20cm into the room. Its footprint is less than half a square meter. Maximum training with minimal space requirements.

The Workout
Multifunctional and versatile - the cable pulley system makes strength training extremely effective. Training on the SlimBeam cable pulley challenges the abdominal and back muscles to ensure body stability. By adjusting the cable pulley position, specific muscles can also be trained – from chest to back, shoulders, arms, and legs - everything is possible.
The range of motion of the cables is impressive. Pulling distances of 4 meters (with double pull) or 8 meters (with single pull) allow for maximum functional development in training. The effective maximum weight of 12.5 kg (single pull) or 25.0 kg (double pull), distributed over 15 weight plates, results in a very fine and harmonious weight gradation. In addition, the SlimBeam's transmission can be changed to increase the effective maximum weight.

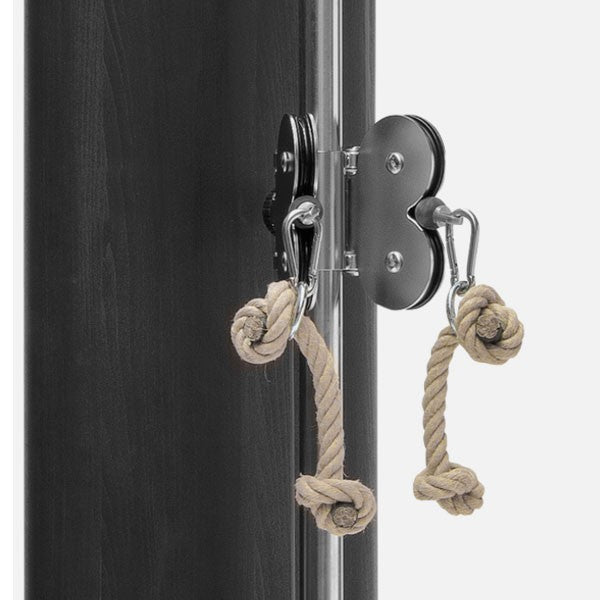

Butterfly
Single and double-sided - the biggest advantage of the SlimBeam is the butterfly. It allows for both double-sided and single-sided training, is height-adjustable and pivotable. The plastic-coated pull ropes run smoothly over the ball-bearing rollers for optimal training effect.

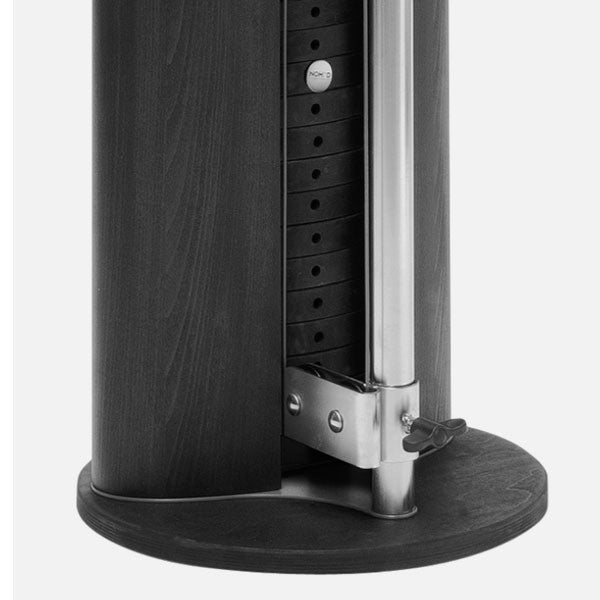

Weights
By default, 14 weights of 5kg each plus the 5kg driver weight are installed in the SlimBeam. Each weight is individually rubberized for noise reduction. The matte black of the rubber coating and the oval shape ensure the weights perfectly match the wooden body.

The Cables
From 3:1 to 1:1 - the ratio can be changed by swapping the cable. This allows for ratios of 3:1, 2:1, and 1:1. The effective maximum weight reaching the body of 12.5kg (single pull) or 25.0kg (double pull), distributed over 15 weight plates, results in a very fine and harmonious weight gradation. The standard ratio is 3:1. It can optionally be upgraded to ratios of 2:1 and 1:1.

Single Pull:
2.5-37.5kg with 1:1 ratio
1.25-18.75kg with 2:1 ratio
0.83-12.5kg with 3:1 ratio

Double Pull:
5-75kg with 1:1 ratio
2.5-37.5kg with 2:1 ratio
1.65-25kg with 3:1 ratio

Digital Workouts Upgradeable
The SlimBeam is pre-assembled in such a way that it can be extended at any time with the SlimBeam Monitor. The built-in electronics ensure that the set weight, total weight, and number of repetitions are automatically detected and clearly displayed during training. Each exercise is shown in detail with a video, and with the Workout-of-the-Day, you receive new full-body workouts daily. A power connection is required.

Training Manual
Over 80 exercises in the training manual - the SlimBeam is the all-round device for home training, and to ensure the right training intensity is always found, exercises have been developed in the accompanying training manual that leave nothing to be desired, from easy to difficult.

Awards
Awarded by the German Design Award and the Plus X Award - the SlimBeam was honored by the jury in three categories: 1. High Quality, 2. Design, 3. Functionality. This seal of approval stands for best quality, durability, and sustainability. The functional design was also recognized.

Features:

• Delivered in 3:1 ratio (2:1 or 1:1 ratio available at an extra charge)
• Base plate D44cm
• Dimensions: D20 x W40 x H215cm
• Wall distance 10cm
• 14 weights of 5kg each
• 1 guide weight 5kg
• Total weight approx. 120kg
• Maximum single pull length: 8m
• Maximum double pull length: 4m
• Pull-up bar with adapter and 2 hemp ropes included
• Finish: Shadow (real wood veneered body)

Available Options for SlimBeam Cable Pulley Tower:

• Monitor
• Ceiling mount
• Accessory adapter

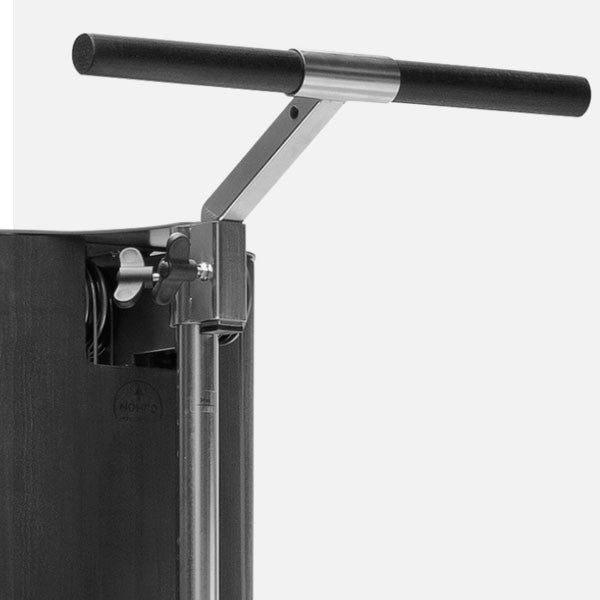

• Pull-up bar
• Lat pull-down upgrade set
• Foot strap
• Ball-bearing pull handles
• SlimBeam Care Set
• Lubricating oil
• Aluminum lat pull-down bar
• Short aluminum lat pull-down bar
• Pull rope

Application: Home use to light institutional continuous use
Device dimensions: D20 x W40 x H215cm, Weight 120kg
Options: Monitor, accessory adapter, connecting bracket set, foot strap, ball-bearing pull handles, care set, lubricating oil, pull rope. Lat pull-down bar, short lat pull-down bar
Accessories: Pull-up bar with adapter, 2 short hemp ropes
Warranty: 2 years labor and material (excluding consumables)
