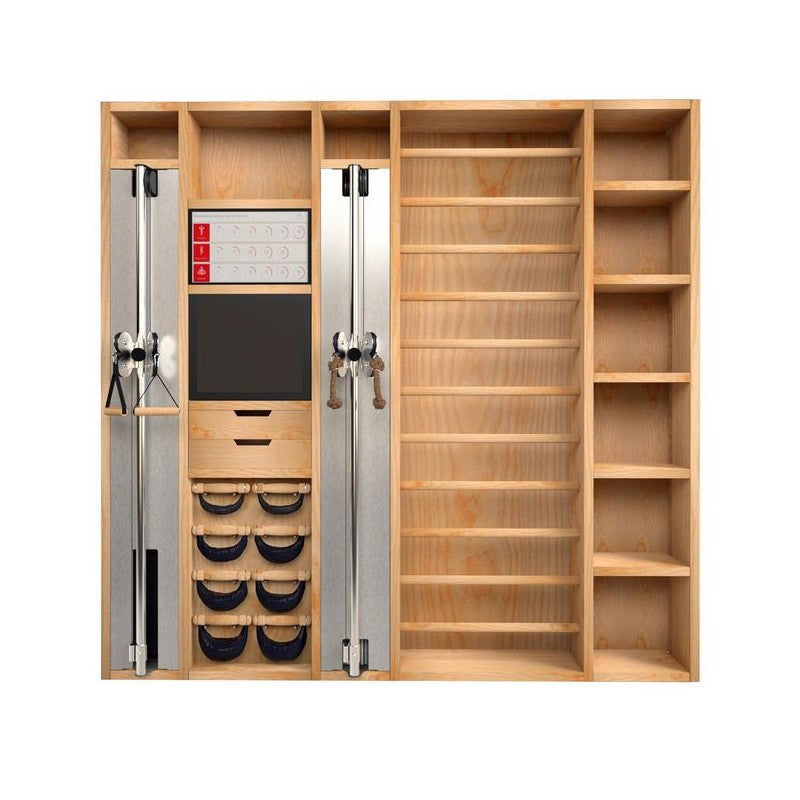

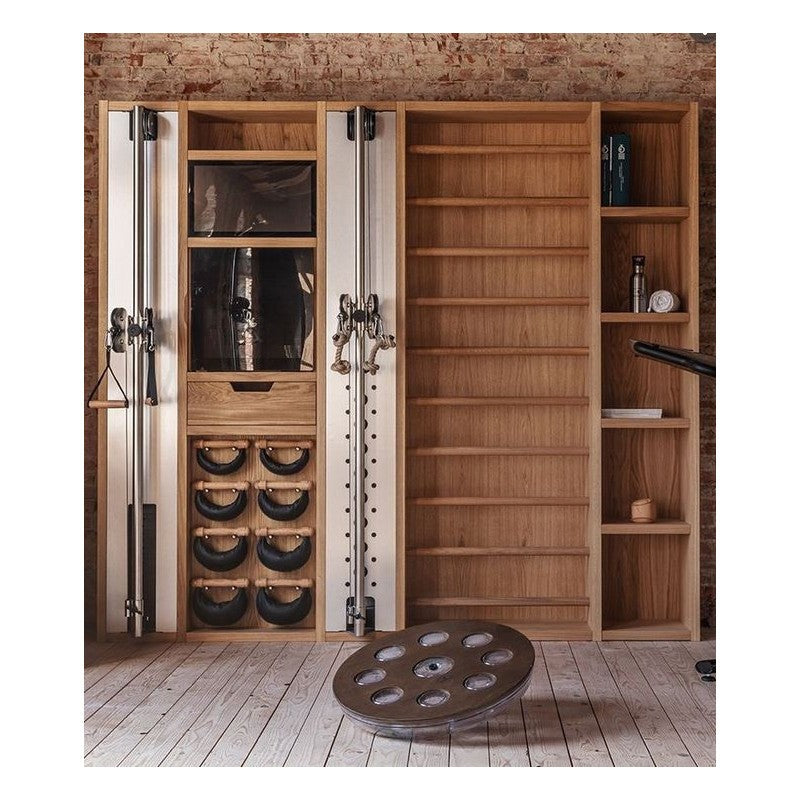

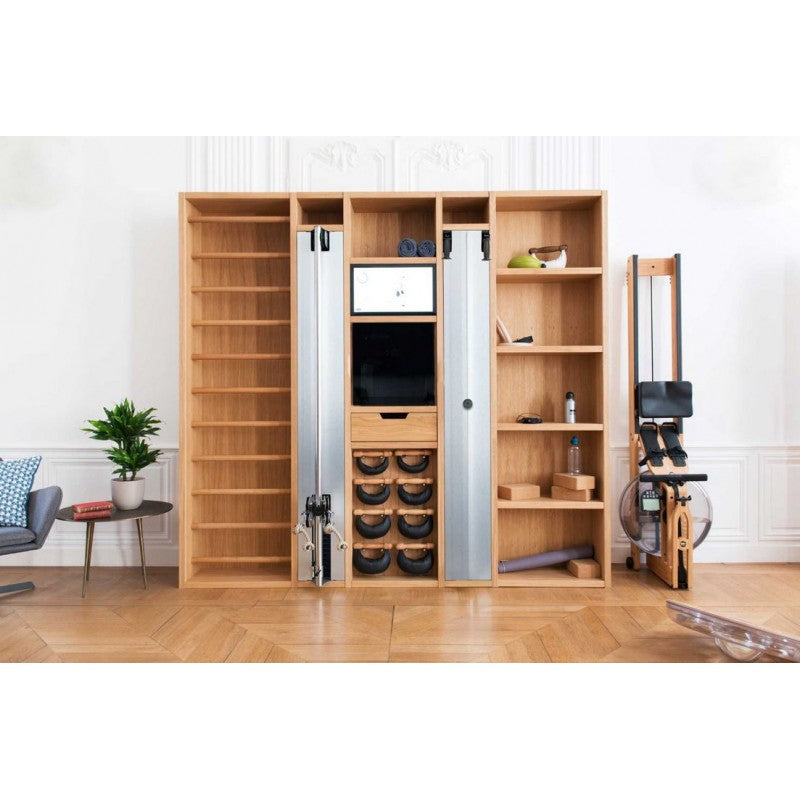

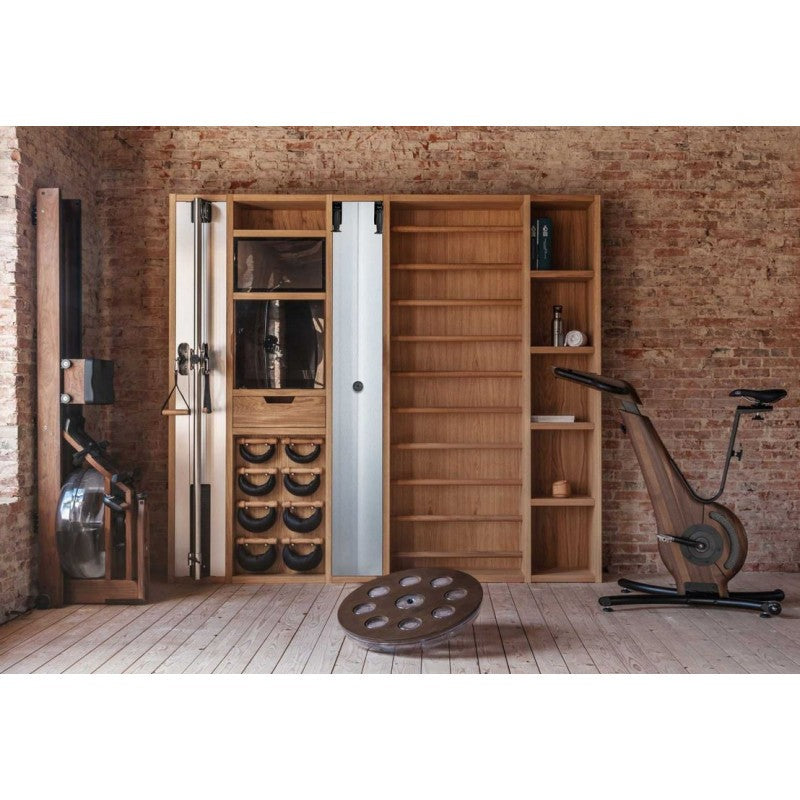

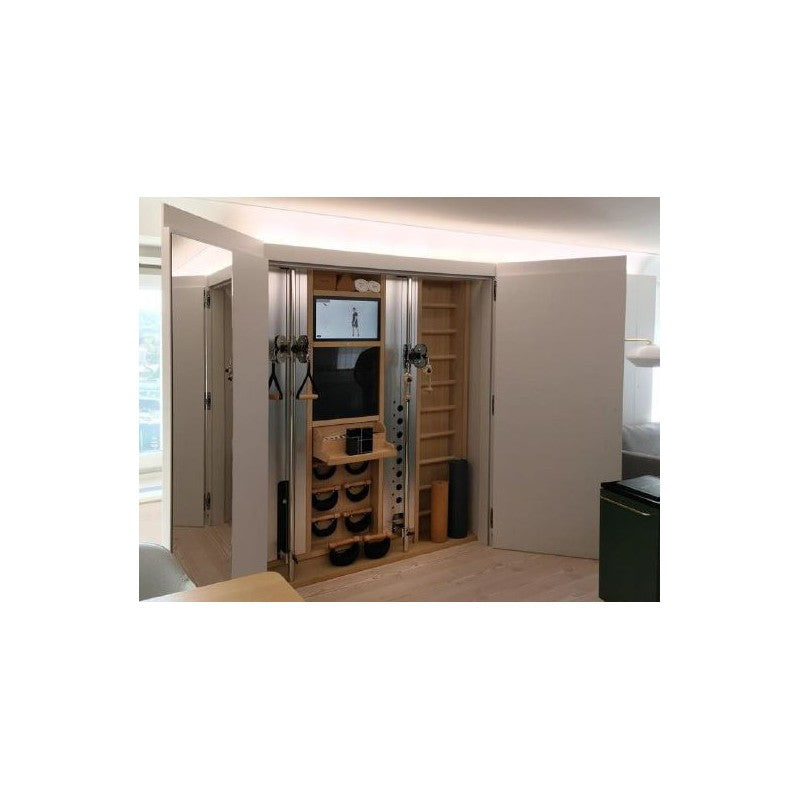

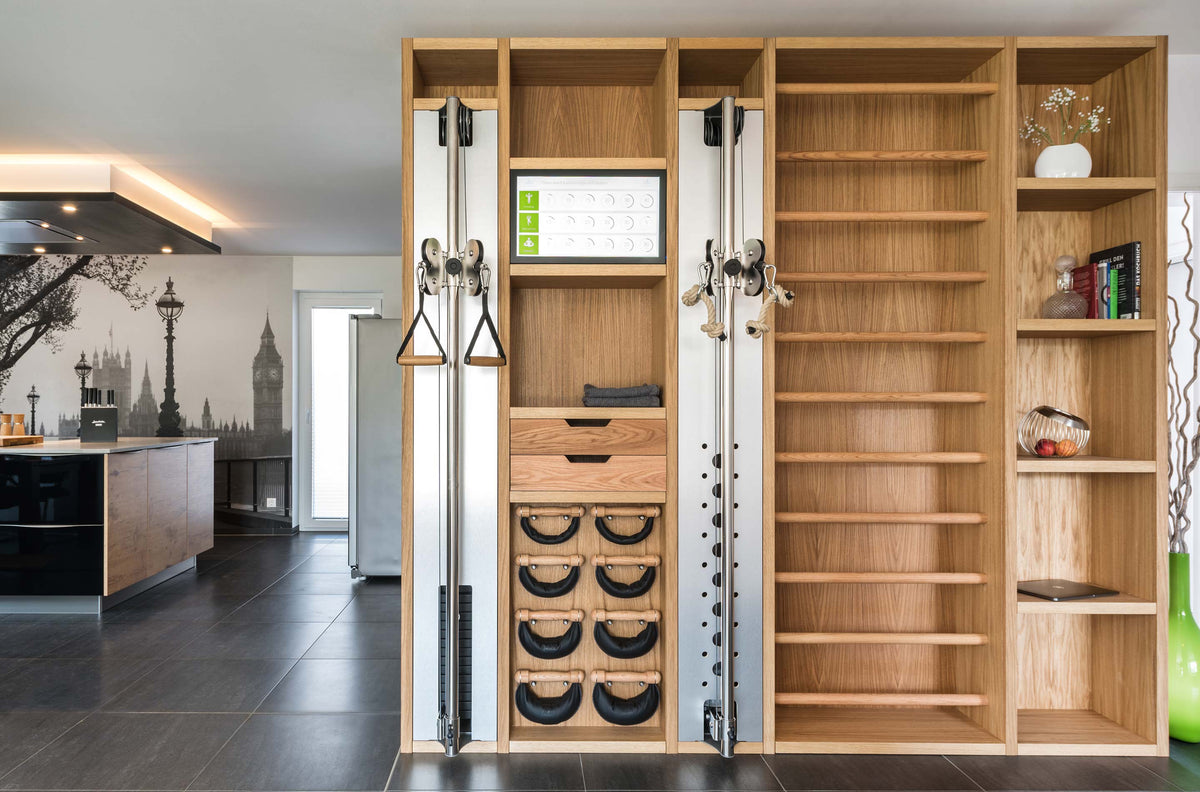

NOHrD Wall Cable Pull

The cable pull module includes an integrated SlimBeam and offers the option to train with weights. The front is coated with a stainless steel look and can be easily opened for maintenance. The visible wooden elements are made of real wood veneer. Due to the guide bar and the butterfly attached to it, the module has a depth of approx. 50cm.

Both two-sided and one-sided pulls can be performed. The butterfly is fully adjustable in height. The standard gear ratio is 3:1, so the pulling weight is 12.5 - 25.0 kg. It is recommended to use the module together with the main unit (sold separately) so that virtual training programs can be performed.

Cable pull with weight plates
With the cable pull, you mainly train your strength. The weights can be easily adjusted, the two-sided butterfly is freely adjustable in height - through the use of the cable pull elements, the NOHrD Wall enables a wide range of effective functional workouts and exercise units.

• Delivered in 3:1 ratio (Optionally available: 2:1 or 1:1 ratio)
• 14 weights à 5kg
• 1 guide weight 5kg
• maximum pull length for single pull: 8m
• maximum pull length for double pull: 4m

Single pull:
2.5-37.5kg at 1:1 ratio
1.25-18.75kg at 2:1 ratio
0.83-12.5kg at 3:1 ratio

Double pull:
5-75kg at 1:1 ratio
2.5-37.5kg at 2:1 ratio
1.65-25kg at 3:1 ratio

Usage: Home use to light-institutional continuous use, maximum user weight 150kg
Device dimensions: Depth 35 (50cm with butterfly) x Width 32.5 x Height can be selected from 220-240cm, total weight of the module approx. 120 kg
Power connection 230V
Warranty: 2 years labor and material (excluding consumables such as cables)
